Product summary

Forklift truck is now one of commonly used carrying vehicles, is into a pallet for loading and unloading, stacking and short-distance transport various wheeled transport vehicles,The international organization for standardization (ISO/TC110 called industrial vehicles, belongs to the material handling machinery, widely used in railway stations, ports, airports, factories, warehouses and other various departments of national economy, is the mechanical loading and unloading, stacking and short-distance transport efficient equipment.

Product feature

1. engine uses the Swedish VOLVO TAD721VE engine, empty inter-cooled turbocharged, full electronic control diesel engine.
2. Gearbox is with German imported electro-hydraulic control gearbox. Power off function, making micro control easier to implement; Fault codes display, greatly simplifies maintenance.
3. Imported from German drive axle, bearing capacity is strong; Crane brake using multi-disc wet brake, has the function of automatically compensate the wear, fully enclosed, free of maintenance.
4. Hydraulic pressure system is highly integrated, energy saving and good maintainability. This system, is integrating hydraulic and braking system together, greatly reducing the pipeline installation, for convenient repair and maintenance, to improve the reliability of the system. The whole system with load sensing control system and hydraulic servo control system, reduces the energy loss and improve the efficiency and comfort of the operation of the vehicle.The temperature controlled cooling device, ensures the work under the temperature of the hydraulic oil best. 5. Engine cover, the cab: hood is by tilting type, cab uses tilting bridge structure, the machine maintenance is good. With air conditioning, internal design layout fully comply with ergonomics, operating environment is more comfortable and safe, greatly reduce the labor intensity of the driver.

Product paremater



Feature	Model				GN255	Unit
	Capacity				25000	Kg
	Centre base				1220	mm
	Power Type				Diesel oil
Size	Lifting height				4000	mm
	Mast tilting angle				6/10	deg
	Dimention			Total length	8600	mm
				Total width	3100	mm
				Total Height	4010	mm
	Min. Turning radius				6100	mm
Property	Max. Travel speed (with/without load)				22/20	Km/h
	Max.lifting speed (with/without load)				320/300	mm/sec
	Max. Gradability				20	%
	Dead weight				36000	kg
base	Tyre		Front		14.00-24-28PR
			Rear		14.00-24-28PR
	Wheel base				4280	mm
Power	Engine	Machine type			GN200/GN255
		type			VOLVO TAD721VE
		Rated power			195/2300	Kw/rpm

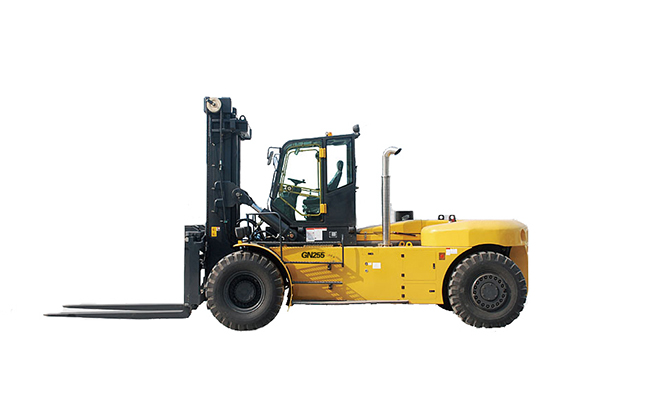

Product picture
