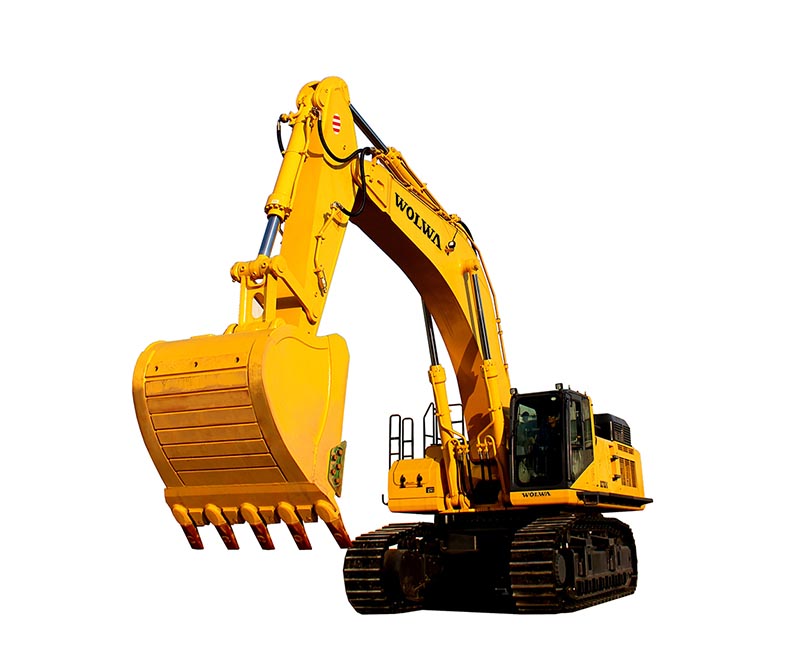

DLS760-8 hydraulic excavator

Adopt imported cummins engine, match the turbocharger and empty cold, powerful, with low noise, low impact performance, excellent fuel economy. The rated power of 354 kw.

Please call:
+86-537-6588123

wolwa  DLS760-8 hydraulic excavotor characteristics

High power engine: Adopt imported cummins engine, match the turbocharger and empty cold, powerful, With low noise, low impact performance, excellent fuel economy. The rated power of 354 kw. Hydraulic system: The negative flow control system, high system stability, good operating performance. Hydraulic parts for the international famous brand. Control system: Using CAN bus distributed control technology and high-grade imported excavator dedicated controller output PWM digital signal directly, improve the system stability, reliability and anti-jamming; To improve the working efficiency and of the excavator has good energy saving effect.

Bridge: At 6 USES the new type of bridge, shock absorption, space capacious, vision, and prevent tilting, prevent falling object function. Structure: Carefully designed slewing platform, crawler frame, working device, and finite element analysis, ensure good mechanics performance. High strength plate, bucket is easy wear parts adopt wear-resisting material, bucket tooth adopt international famous brand ESCO, ensure the machine can also be strong and durable in harsh environment.

wolwa  DLS760-8 hydraulic excavotor parameters

type DLS760.8 unit
weight 71.2 ton
bucket capacity 4.0
engine type CUMMINS QSX15
power 354/1800 kw/r/min
speed 4.8/3.0 km/h
rotate speed 7.2 r/min
grabeability 70 %
bucket digging force 328 KN
ground pressure 260 KPa
max flow 450*2 L/min
fuel tank capacity 950 L
hydraulic tank capacity 335 L
maximum digging height 11165 mm
maximum Dumping Height 7040 mm
maximum digging depth 7190 mm
maximum vertical wall digging depth 6800 mm
least radius of gyration 5200 mm

wolwa  DLS760-8 hydraulic excavotor dimension

 DLS760-8 hydraulic excavator

total length 12170 mm
total width 4265 mm
total height(Movable arm top) 5050 mm
total height(cab roof) 3527 mm
Movable arm length 6600 mm
bucket rod length 3020 mm

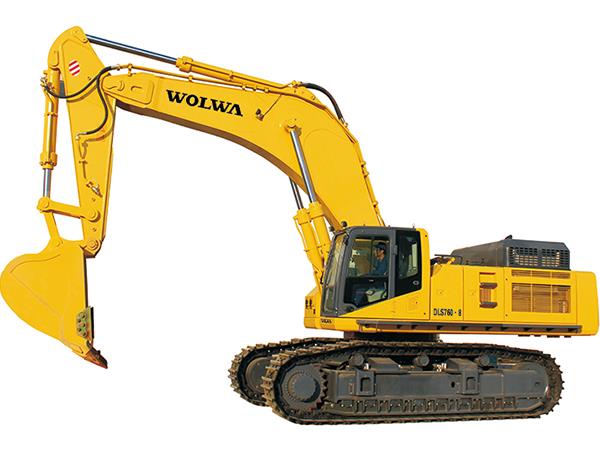

wolwa  DLS760-8 hydraulic excavotor entity photo:

DLS760-8 hydraulic excavator
