1- Famous brand: Taishan brand with long history and good reputation; 2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system; 3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance; 4- High adaptability: matches all kinds of agricultural implements; 5- Diverse gear combinations: creeping shift and shuttle shift; 6- Comfortable operation: full hydraulic system;
Characteristics:
1- Famous brand: Taishan brand with long history and good reputation;
2- Top quality: successfully passed ISO 9001 international quality certification system and China 3C quality system;
3- Famous brand engines: strong power, low oil consumption, easy starting, and good economic performance;
4- High adaptability: matches all kinds of agricultural implements;
5- Diverse gear combinations: creeping shift and shuttle shift;
6- Comfortable operation: full hydraulic system;
1)Type:4*4

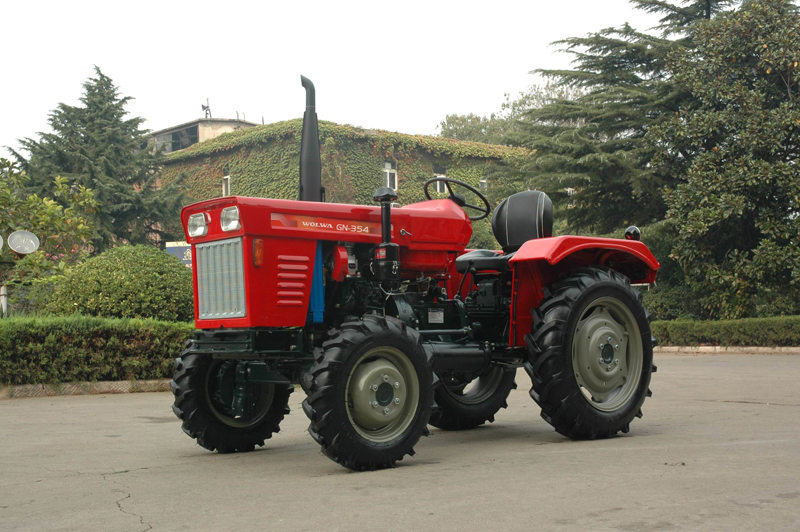

2)Tractor Model:GN354
3)Wheel base(mm):1830
|
Model |
GN354 |
|
|
General Specifications |
Type |
4*4 |
|
Overall dimensions LxWxH(mm) |
3235*1455*2070 |
|
|
Constructional weight(kg) |
1700 |
|
|
Rated traction force(kn) |
10.3 |
|
|
Wheel base(mm) |
1830 |
|
|
Front wheel tread(mm) |
1175(nonadjustment) |
|
|
Rear wheel tread(mm) |
1170(adjustment) |
|
|
Min.land clearance(mm) |
under the front axle:345;under the transmission box:395 |
|
|
Engine |
Model |
SD2105T1 |
|
Type |
Inline,vertical,water cooling,four- stroke |
|
|
12 hours power(kw) |
25.4 |
|
|
Rated Speed(r/min) |
2300 |
|
|
Fuel consumption(g/kw.h) |
≤250 |
|
|
Max.torque(N.m) |
≥121 |
|
|
Speed of Max.torque(r/min) |
≤1610 |
|
|
BorexStroke(mm) |
100*105 |
|
|
Diesel Consumption(g/kW.h) |
≤1.84 |
|
|
Starting mode |
Electrcity |
|
|
Parking Brake |
|
|
|
Transmission |
Clutch |
Dry,one stage |
|
Gear box |
Spur gear(4+1)*2 plain compound type |
|
|
Steering |
Screw nut circulation ball type |
|
|
Steering type |
Power steering |
|
|
Main Drive |
Spiral bevel gear type |
|
|
Differential Mechanism |
Two planetary gear,closed |
|
|
Final Drive |
external meshing spur gear type |
|
|
Operating System |
Lifter tilling depth control |
Draft and Position adjustment |
|
Max.lifting capacity(kn) |
≥5.78 |
|
|
Suspension type |
Rearmounted,three-point,Icategory |
|
|
Speed of P.T.O.(r/min) |
(540,1000),(750,1000),(540.750) |
|
|
Type of P.T.O. |
postposition, semiindependent |
|
|
Traction Equipment |
fixed type |
