Wheel type hydraulic stacker

This model possess green energy power system: international famous brand engine, powerful, stable performance, fuel-efficient, high efficiency, low noise. Well-known international brand imported hydraulic components, less power consumption, operating speed, complex motion optimization design, precise movement, motor coordination, and long working life. Hydraulic walking forward and back are two-speed travel with afterburner pump gas liquid brake system safe and reliable.

Please call:
+86-537-6588123

Product introduction:

This model possess green energy power system: international famous brand engine, powerful, stable performance, fuel-efficient, high efficiency, low noise. Well-known international brand imported hydraulic components, less power consumption, operating speed, complex motion optimization design, precise movement, motor coordination, and long working life. Hydraulic walking forward
and back are two-speed travel with afterburner pump gas liquid brake system safe and reliable. 360-degree rotary table with grasping, digging, folders, broken arm and other three sections of a variety of aids, has a greater range of operations, more flexible mode of operation, more delicate curve, to complete the ordinary excavator can not be done. Stable and reliable chassis, eight tires walking, long legs. Shoveling with a special shape, front and rear support to achieve all-terrain have the ability to work to ensure that the job
is safe, reliable, fast and stable. After the occasion of biological power plants, waste field operations, waste disposal and other user used, it meets the design requirements and wins users’ high appraisal.

Operating Weigh:11,000KG

Power:74kw/2200rpm

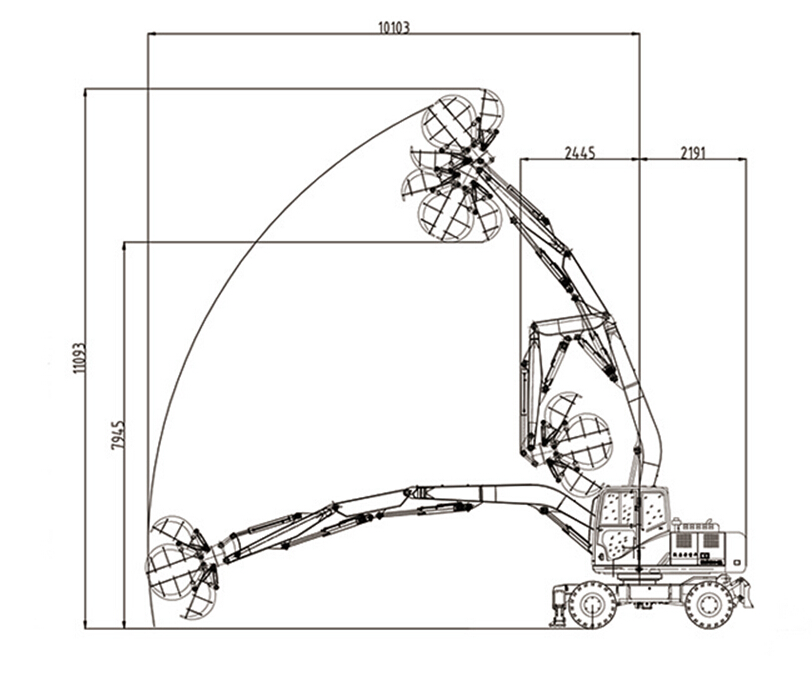

Product drawing:

Wheel type hydraulic stacker

Product parameters:





  DIMENSIONS


总宽


Overall width

mm


2440

总高(至驾驶室项部)

Machine height(cab top)

mm

2940

总长度

Overall length

mm

7360(transport)

总高(至动臂项部)

Overall height(boom top)

mm

3422

配重离地间隙

Ground clearance (bob_weight)

mm

1150

最小离地间隙

Min. ground clearance

mm

402

轮胎距离

  wheelspan

mm

Before1794 Back1944

车轮轴距

Wheelbase

mm

2400

推土铲(宽)

dozer blade(width)

mm

2234

推土铲(高)

dozer blade(height)

mm

460

外形尺寸

outline dimension

mm

1600*930*1160

开口尺寸

opening width

mm

1800

抓斗自重

Grab weight

Kg

330


  SPECIFICATIONS



发动机型号

Engine model


4BTAA3. 9-CIOO

工作压力

Working pressure

Mpa

28

额定流量

Rated flow


L/min


2*70.4*20.7

回转速度

Rotating speed

rpm

0-12

行走速度

Travel speed

Km/h

0-20

最大牵引力

Maximun hauling force

KN

64.8

最大扭矩

Max.torque

N.m/rpm

400/1500


爬坡能力

Gradeability

°

20

燃油箱

Fuel tank

L

155

液压油箱

Hydraulic oil tank

L

110

额定排量

Rated discharge capacity

ml/r

2*36+9.3






  OPERATING SCOPE




动臂长度

Boom length

mm

4800

斗杆长度

Arm length

mm



2500+1500

最大装载范围

Max. loading range



mm

1010

最大装载重量


Max. loading weight

kg

450

最大卸载高度

Max. dumping height


mm

7900

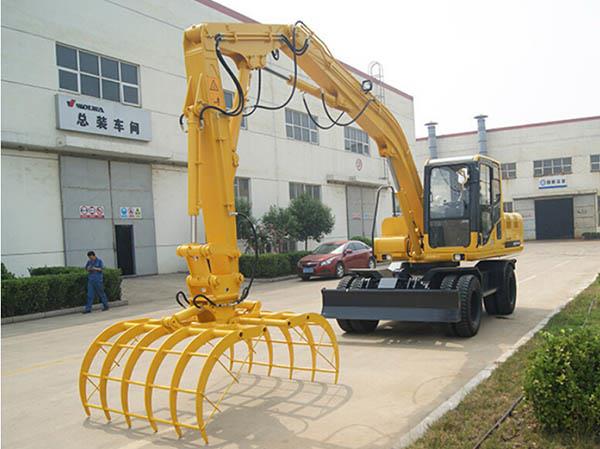

Product pictures:

Wheel type hydraulic stacker
