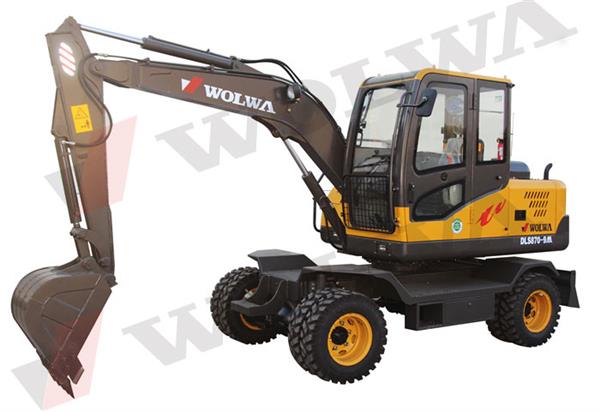

【NEW】DLS870-9M wheel excavator

Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.

Please call:
+86-537-6588123

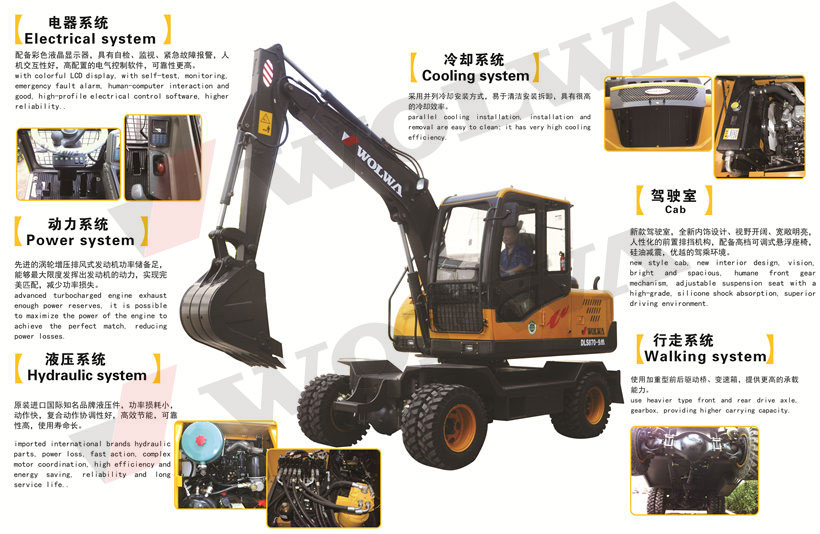

DLS870-9M wheel excavator excavator product feature

1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.

2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.
4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.
5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.

6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.

DLS870-9M wheel excavator specification

model unit  specification
machine weight kg 6600
bucket capacity  m3 0.28
overall size  mm
mm
bob-weight clearance ground mm 1023
tail rotation radious  mm 1833
tail length  mm 1833
up height  mm 2000
total height (top of cabin ) mm 2827
min clearance ground  mm 217
tires distance  mm 1670
wheelbase  mm 2400
/
/
boom length  mm 3050
arm length  mm 1750
total length  mm 5796
mm /
total width  mm 2150
specification  engine  model brand  / YD4JZG
type  / Array, four stroke,
water cooling,
direct injection, pressurization
Bore * trip mm 95/105
The piston displacement L 2.977
rated power  kw/rpm 48/2300
Maximum torque N.m/rpm 245/1610
hydraulic system  model hydraulic pump  gear pump *2   SGP1A23F2H9-
L090C/R264C
rated displacement  ml/r 23+23
The forerunner of pump Mpa 3
main valve  8
Pressure of work MPa 20
rated flow  L/min 105.8
hydraulic oil tank  L 103
Fuel tank capacity L 125
working system  Rotary speed rpm 10
work speed  km/h 0~30
 bucket digging force  kN 35
arm digging force  kN 28
Maximum traction kN 39
Climbing ability ° 30
Ground pressure Kpa /
dump blade (width*height) mm 2024/440
brake  / break air
brake system  /
working range max digging distance  mm 6074
The ground maximum effective mining range mm 5878
max digging depth  mm 3228
mm /
mm /
max digging height  mm 6202
max dumping height  mm 4533
The minimum radius of gyration mm 2361

DLS870-9M wheel excavator details

DLS870-9M wheel excavator details

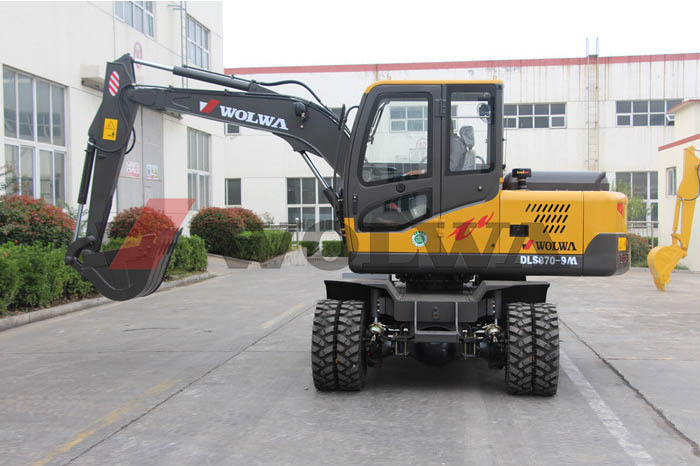

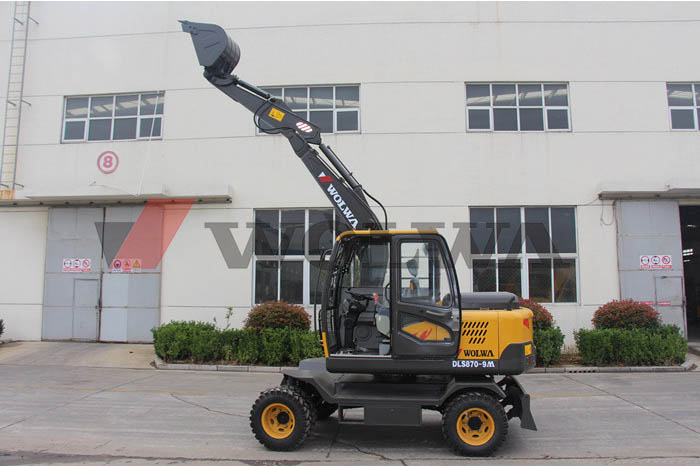

DLS870-9M wheel excavator photo

DLS870-9M wheel excavatorDLS870-9M wheel excavator
