characteristic

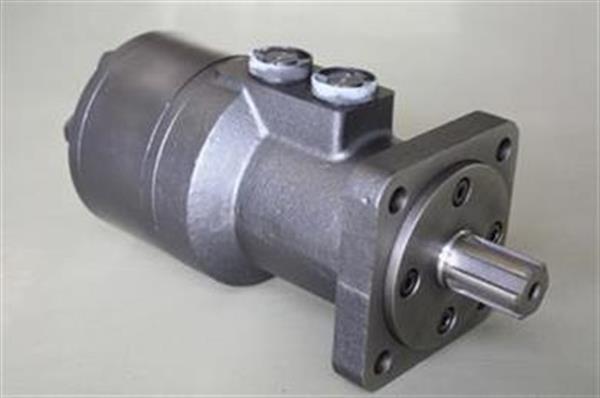

This series motor is a kind of rolling bearing supporting shaft with streaming cycloid Hydraulic motor，With the output shaft to the overall structural design with flow organization。Use inlay type stator; Use on both ends of the rolling bearing support; Use special import back rotation sealing ring, make motor allowed to work under high back pressure。
characteristic

· With the whole structure, the flow mechanism and the output shaft has higher precision of oil distribution, high mechanical efficiency

· Advanced shaft seal  design, high back pressure to bear ability

· With tooth spline parameters of stator and the advanced design of high mechanical efficiency, long service life

· On both ends of the double roller bearing design, has the larger lateral bearing capacity

· The overall output shaft design, higher intensity

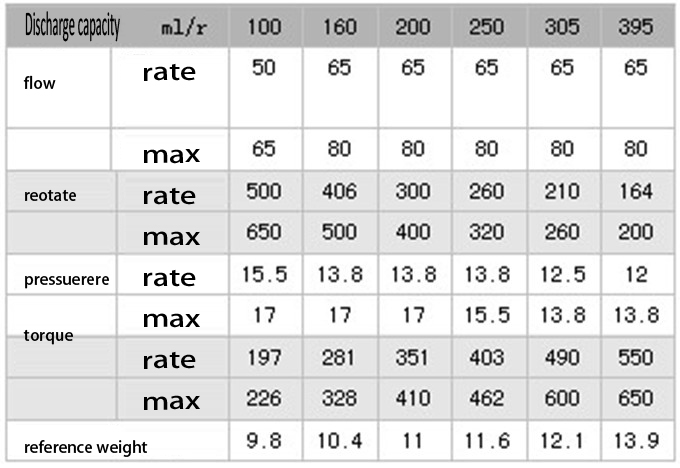

specification

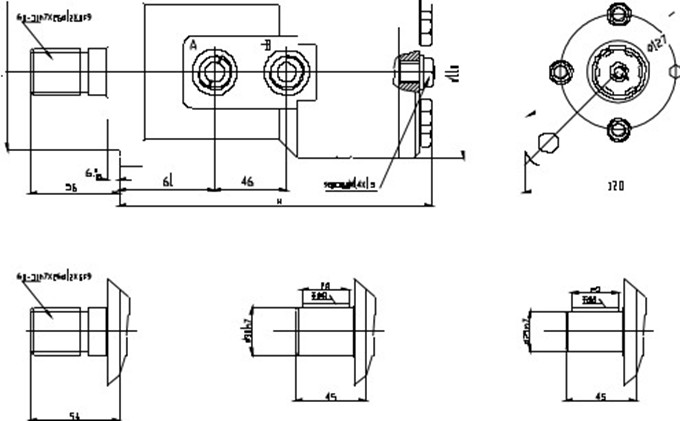

motor veer

face output axle ,A is enter   B is exit  clockwise rotate
