Characteristics

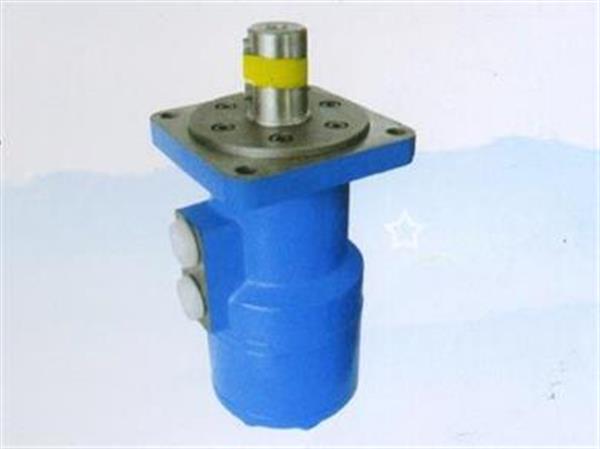

GN4 motor with a motor bearing support
1、Double ball bearing support, can withstand the bigger radial force。

2、The ejector pin tooth rotor vice design, low starting pressure, high efficiency, good stability。

3、Reliable design of shaft seal ，under high back pressure, can be used in parallel and  series.

4、Forward inversion switch easy，steady rotated speed.

5、Joint shaft special design, long service life of the motor。

6、The motor structure is compact, easy to install。

Description：

1.1Maximum continuous value:the max value when work continuously

2.2Discontinuous value:the max value that can insist six seconds in one minute
3.3Don't use in this condition:max speed and max pressure.

4.4The best situation:1/2-2/3 continuous work

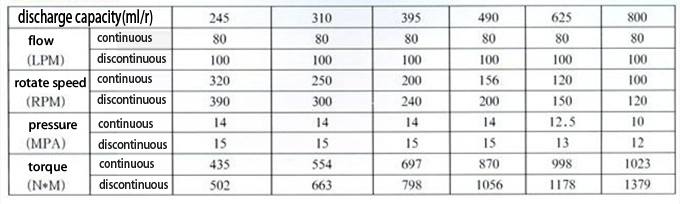

specification
