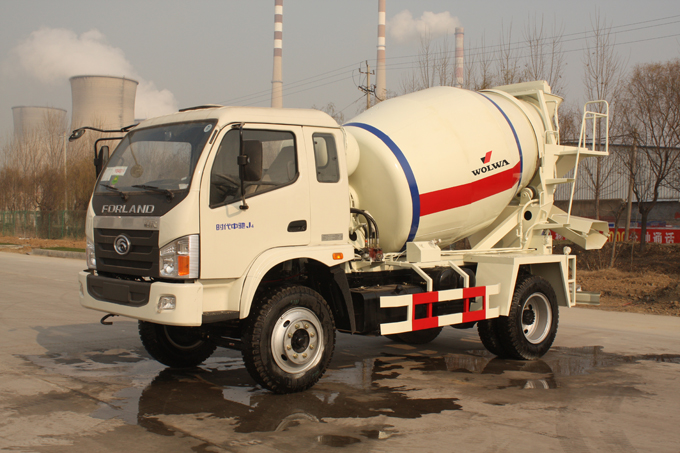

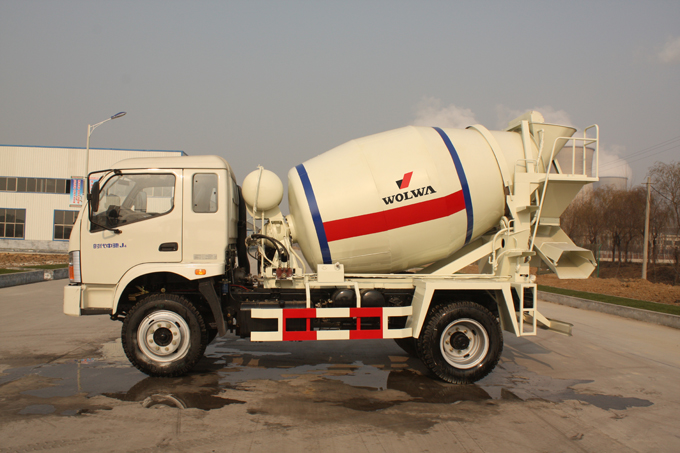

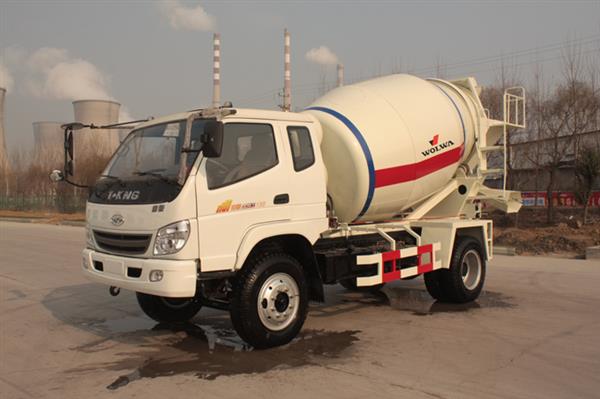

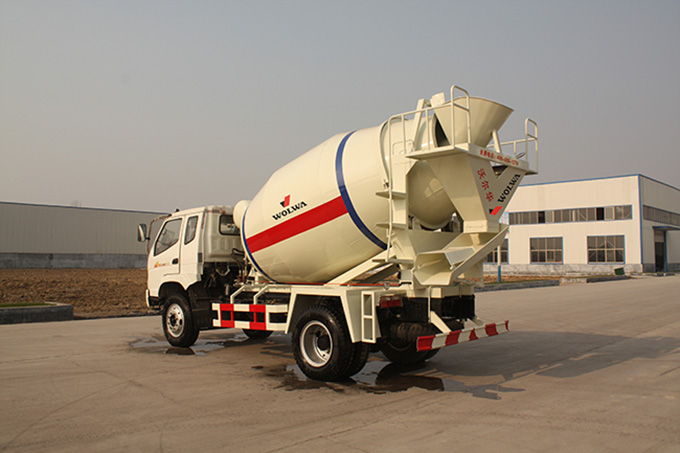

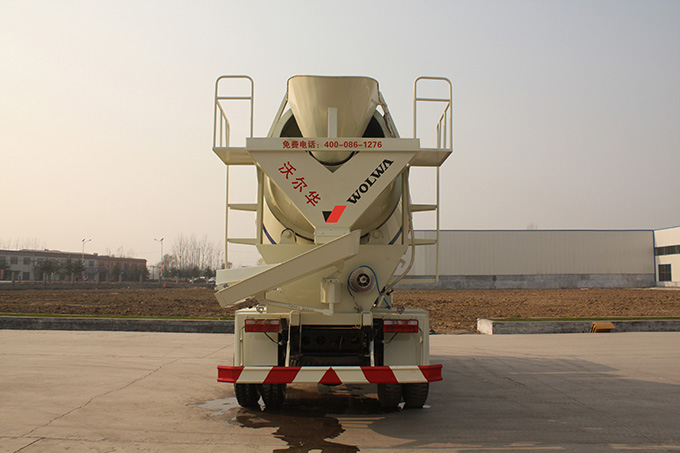

Concrete mixer truck introduction

Concrete mixer truck(cement mixer, concrete mixer), is specially used for transportation of concrete. Because of its appearance, often referred to as snail truck. There is a mixing drum on the truck and it keep on mixing during transportation to avoid solidification of concrete. After the concrete is output, it is usually water washed inside, toprevent hardening of the concrete, and taking up the space of drum.

Concrete mixer truck composition

Composed of automobile chassis, mixing drum, transmission system, water supply device, power taking device, front and rear drum support, reducer, hydraulic transmission system, material input and output system, operatingmechanism,etc. Due to technical reasons, domestic mixer truck with 3 to 8CBM volume adopt 4 maindomestic parts, more than 8CBM adopt mported components.
Mixers: second class chassis, transmission system, hydraulic system, frame, mixing tank, input and output device, water supply system, control system,ladder,etc. Drum and the reducer is connected andinstalled on the frame at the front desk, the rear is supported by two wheel installed in the frame of the background.

Concrete mixer truck parameter

Product:：4CBM concrete mixer truck	engine model：YC4D130-41
Chassis model：Farmland BJ1143VJPFA-1	engine type: Forced circulation cooling
Total weight：（kg）13570	engine output：4200
Overall dimention：646022503300	engine power：（kw）96
VBH（mm）	Max.turning：(r/min）3200
Axle base：（mm）3400	drum capacity：（m³）6.3
Front axle：（mm）1230	Max.mixing Vol.：（m³）4
Rear overhang：（mm）1830	input speed：（m³）≥0.5
gradeability：25	output：（m³）≥0.8
Max.machine speed：（km/h）≤583	max.turning speed：（r/min）6-15
Min.turning radius：（m）≤15	drum tilt angle：（°）16
Clutch:double disc jointed	Max.drum Dia.（mm）ф1900
Drive type：axle drive	reducer：HJ200.43
Drive way：rear wheel	hydraulic pump：Huayou40 gear pump
Turning type: hydraulic	hydraulic motor：cycloid motor
Machine brake: air Braking	water tank Vol.：（L）180
Brake：air Braking	Water supply：air pressure
tire：825-20

Concrete mixer truck feature

With famous power system: 4108 yuchai engine, economical fuel, strong power , maintenance is convenient; variable gear box, gear distribution is reasonable, improve the vehicle gradeabilityin the case of fuel consumption;
1. choose domestic famous parts: domestic shijiazhuang branch wing reducer, Ryan sheng jie oil pump, zhenjiang motor;
2. effectively solve the climbing overflow problem: the biggest hopper designed, are more easily to fill in concrete, feed hopper seal design.
3. Drum designed professionally: large volume of the drum,much bigger loading and mixing space.slender tanks effectively lower center of gravity, centrifugal force is small, has a good lateral stability.
4. parts abrasion resistance: good end after unloading slot cover has high wear-resisting material, greatly improve thewear resistance and service life of mixing tank and blades adopt argon gas automatic welding technology,wear-resistant material type mixing tank and blades to extend the service life.
5. flushing water conveniently: four road waterway design and scour of tank, mouth hopper cleaning more convenient.
6. easy operation: bridge on both sides of the manipulation, making loading unloading more convenient, suitable for rainy days and muddy road.
7. front-rear system design is reasonable: front-rear system adopts streamline design, guarantee the front-rear fluency, no leakage phenomenon. Reinforcement plate is added in key parts to enhance the wear resistance, equipped with alocking mechanism, the unloading groove can be fixed in proper position.
