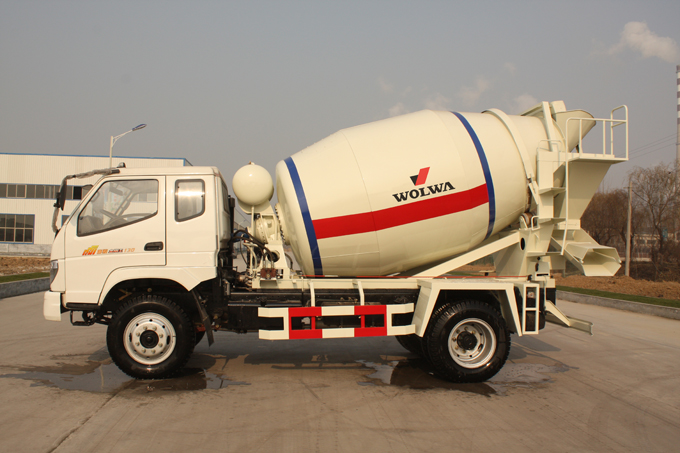

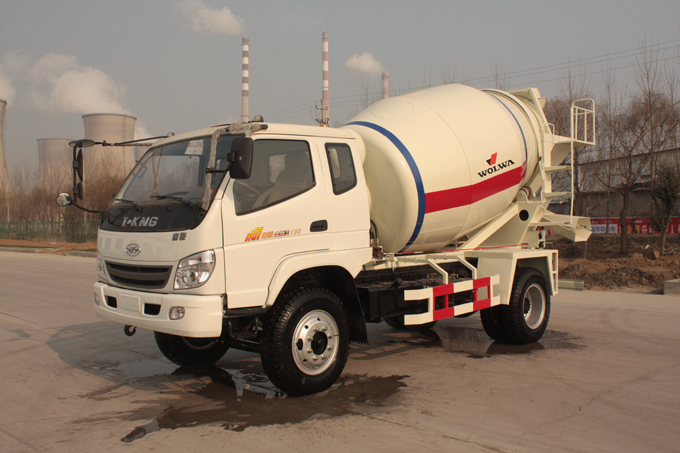

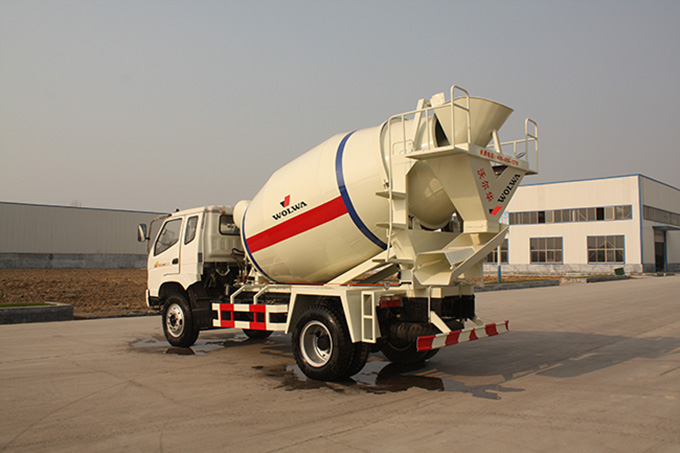

Concrete mixer truck introduction

Concrete mixer truck(cement mixer, concrete mixer), is specially used for transportation of concrete. Because of its appearance, often referred to as snail truck. There is a mixing drum on the truck and it keep on mixing during transportation to avoid solidification of concrete. After the concrete is output, it is usually water washed inside, to prevent hardening of the concrete, and taking up the space of drum.

Concrete mixer truck composition

Composed of automobile chassis, mixing drum, transmission system, water supply device, power taking device, front and rear drum support, reducer, hydraulic transmission system, material input and output system, operating mechanism,etc. Due to technical reasons, domestic mixer truck with 3 to 8CBM volume adopt 4 main domestic parts, more than 8CBM adopt mported components.
Mixers: second class chassis, transmission system, hydraulic system, frame, mixing tank, input and output device, water supply system, control system,ladder,etc. Drum and the reducer is connected and installed on the frame at the front desk, the rear is supported by two wheel installed in the frame of the background.

Concrete mixer truck parameter

Product:：6CBM concrete mixer truck	engine model：YC4D130-41 turbocharge
Chassis model：T-king ZB3160TPE3F	engine type: Forced circulation cooling
Total weight：（kg）15800	engine output：4200
Overall dimention：702522853570	engine power：（kw）96
VBH（mm）	Max.turning：(r/min）3200
Axle base：（mm）3700	drum capacity：（m³）9
Front axle：（mm）1290	Max.mixing Vol.：（m³）6
Rear overhang：（mm）2035	input speed：（m³）≥0.5
gradeability：25	output：（m³）≥0.8
Max.machine speed：（km/h）≤583	max.turning speed：（r/min）6-15
Min.turning radius：（m）≤15	drum tilt angle：（°）16
Clutch:double disc jointed	Max.drum Dia.（mm）ф2110
Drive type：axle drive	reducer：HJ300.45
Drive way：rear wheel	hydraulic pump：Huayou50 gear pump
Turning type: hydraulic	hydraulic motor：cycloid motor
Machine brake: air Braking	water tank Vol.：（L）180
Brake：air Braking	Water supply：air pressure
