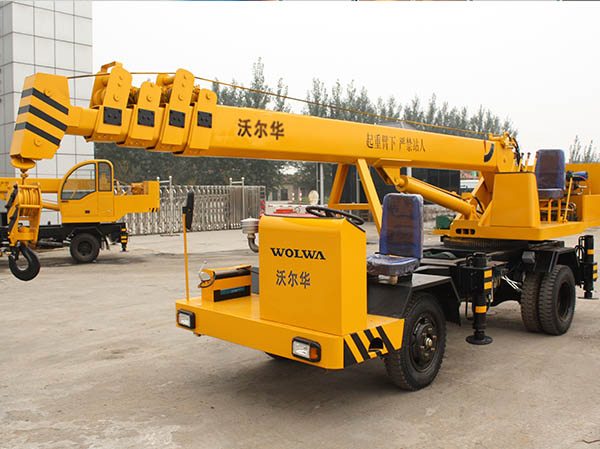

4 ton selfmade-GNQY-Z4 crane

Crane is a kind of circulation, intermittent movement of the machine.

Please call:
+86-537-6588123


Crane introduction

Commonly known as the Crane is a Crane, Crane (Crane) is a kind of hoisting machinery, is a kind of circulation, intermittent movement of the machine. A work cycle including: fetch up the items from the fetch, lowered level and then move to the designated place, then reverse movement, to return the fetch device in situ, for the next cycle.

4 ton selfmade-GNQY-Z4 crane parameter

型号/SPECIFICATION
GNQY-Z4
最大起重量/MAX RATED HOISTING WEIGHT
4000Kg
最大起升高度/MAX HOISTING HEIGHT
20-22m
发动机型号/INTERNAL COMBUSTION ENGINE TYPE
ZS24 ZS30
功率/RATED POWER
18.7 22Kw
底盘型号/CHASSIS TYPE
ST4-I
起升速度/LIFING SPEED
26(52)m/min
回转速度/STEERLNG SPEED
2.8/min
行驶速度/DRVLNG SPEED
≤50Km/h
支腿跨距/OUTRIGGER DISTANCE(CROSS$LOVG)
4.0x2.7m
外形尺寸/OVERALL DIMENSIONS(L$H$W)
7.6x1.9x2.63m

Crane operation guide


1, Do not hang overload or uncertain weight;
2, Do not hang when the command signal is not clear;
3, Do not hang when bundling, hang not firm or imbalance;
4, Do not hang when someone is suspended or objects floating;
5, Do not hang when structures or components have an impact on security work;
6, Do not hang when there is buried objects with uncertain pulling force;
7, Do not hang when the working place is dark, sites, suspended objects and command signal could not be seen clearly;
8, Do not hang when there is no pad between suspended object edges and binding wire;
9, Do not hang when slanting tilt;
10, Do not hang when the safety device is not complete, and unreliable, etc.
11. Do not work when there is high tension line.
12. Do not work when It's cloudy and windy.

4 ton homemade-GNQY-Z4 crane

4 ton selfmade-GNQY-Z4 crane
