5 ton selfmade-GNQY-Z5 crane

Crane is a kind of machine widely used in ports, workshop, electrical and constructional site.

Please call:
+86-537-6588123


Crane introduction

Crane is a kind of machine widely used in ports, workshop, electrical and constructional site.
The crane is a general name of hoisting machine. Frequently called crane is autocrane, crawler crane
and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue.

5 ton selfmade-GNQY-Z5 crane parameter

型号/SPECIFICATION
GNQY-Z5
最大起重量/MAX RATED HOISTING WEIGHT
5000Kg
最大起升高度/MAX HOISTING HEIGHT
22m
发动机型号/INTERNAL COMBUSTION ENGINE TYPE
4B4-46M22
功率/RATED POWER
34Kw
底盘型号/CHASSIS TYPE
ST5-I
起升速度/LIFING SPEED
26(52)m/min
回转速度/STEERLNG SPEED
2.8/min
行驶速度/DRVLNG SPEED
≤60Km/h
支腿跨距/OUTRIGGER DISTANCE(CROSS$LOVG)
4.0x3.0m
外形尺寸/OVERALL DIMENSIONS(L$H$W)
7.7x2.0x2.65m

Crane operation guide


1, Do not hang overload or uncertain weight;
2, Do not hang when the command signal is not clear;
3, Do not hang when bundling, hang not firm or imbalance;
4, Do not hang when someone is suspended or objects floating;
5, Do not hang when structures or components have an impact on security work;
6, Do not hang when there is buried objects with uncertain pulling force;
7, Do not hang when the working place is dark, sites, suspended objects and command signal could not be seen clearly;
8, Do not hang when there is no pad between suspended object edges and binding wire;
9, Do not hang when slanting tilt;
10, Do not hang when the safety device is not complete, and unreliable, etc.
11. Do not work when there is high tension line.
12. Do not work when It's cloudy and windy.

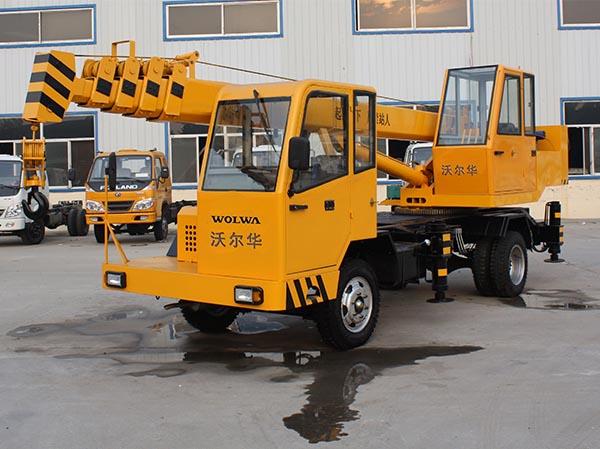

5 ton selfmade-GNQY-Z5 crane picture

5 ton selfmade-GNQY-Z5 crane
