Electric forklift battery is the source power,Drive motor and hydraulic system,To realize the driving and handling operation.From the overall,Electric lift trucks in the durability, reliability and applicability have been significantly improved,Can completely forklift compete with internal combustion engine
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no pollution, easy operation, energy efficient。The operator's work intensity is much lighter than internal-combustion forklift，The electric steering system，Speed control system，hydraulic control system，braking systems Are controlled by electrical signals，Greatly reduces the labor intensity of operators，So this supply big help to improve its efficiency and the accuracy of work .
• Reliable performance of the ac motor and ac pump motor, no carbon brush and free maintenance
• CAN bus technology, reduce the wiring, the reliability of communication signal transmission
• The vehicle structure is compact, small shape, small bending radius, good maneuverability, the operating system is designed according to the man-machine engineering, operation comfortable.
• The advanced double drive communication technology
• Reduce before hanging from,Increase the wheelbase,Longitudinal stability is extremely good.
• regenerative brake
|
haracteristics |
Model |

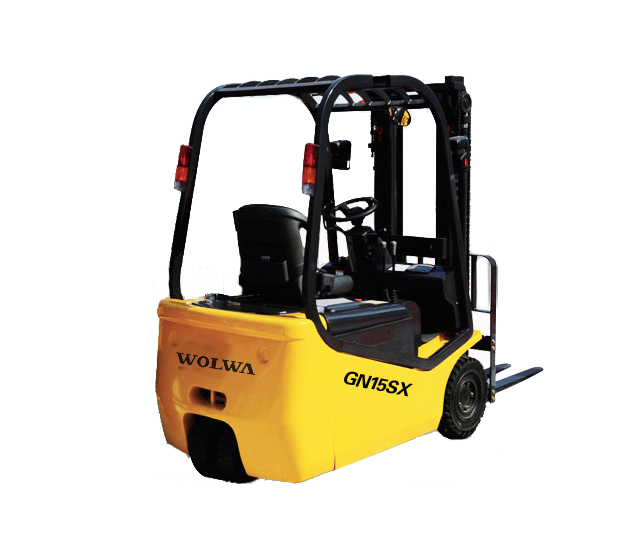

GN15SX |
|
|
|
Capacity |
1500 |
kg |
||
|
Load center |
500 |
mm |
||
|
Power type |
Battery |
|||
|
Dimensions |
Total length (with/without fork) |
2864/1944 |
mm |
|
|
Total width |
1070 |
mm |
||
|
Total height |
2050 |
mm |
||
|
Mast height |
2050 |
mm |
||
|
Max. height |
3945 |
mm |
||
|
Lift height |
3000 |
mm |
||
|
Free lift height |
135 |
mm |
||
|
Ground clearance |
85 |
mm |
||
|
Wheel & tire |
Front overhang |
370 |
mm |
|
|
Wheel base |
1386 |
mm |
||
|
Rear overhang |
189 |
mm |
||
|
Fork adjustment |
200/940 |
mm |
||
|
Front tread |
898 |
mm |
||
|
Rear tread |
170 |
mm |
||
|
Performance |
Min. turning radius |
1580 |
mm |
|
|
Mast tilting angle |
5/7 |
o |
||
|
Battery(voltage/capacity) |
48/480 |
V/Ah |
||
|
Travel speed(with/without load) |
12/13 |
Km/h |
||
|
Lift speed (with load) |
300 |
mm/sec |
||
|
Max. gradeability |
15 |
% |
||
|
Battery weight |
864 |
kg |
||
|
Tire |
Front |
18×7-8 |
||
|
Rear |
15×4.5-8 |
|||
|
Service weight |
2944 |
kg |
||
