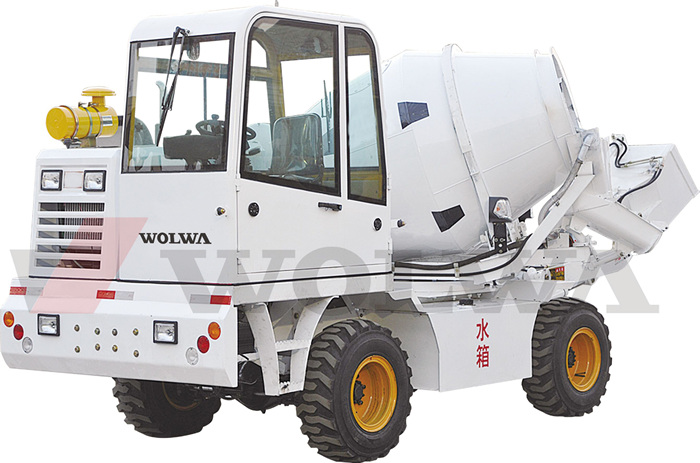

1.2m³ Automatic feeding material rotary mixer trucker introduction

Concrete mixer truck(cement mixer, concrete mixer), is specially used for transportation of concrete. Because of its appearance, often referred to as snail truck. There is a mixing drum on the truck and it keep on mixing during transportation to avoid solidification of concrete. After the concrete is output, it is usually water washed inside, to prevent hardening of the concrete, and taking up the space of drum.

1.2m³ Automatic feeding material rotary mixer trucker composition

1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers, rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring. In the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,

concrete material spilled, the series of problems such as driving safety.

1.2m³ Automatic feeding material rotary mixer trucker specification

Mixing System	Drum capacity 1.7 m³, height of 1.5 meters discharge .
Production capacity	Concrete output: 1.2 m³/ cans, 4.8 m³ / h
Engine	Wuxisida brand with 490 boost ， 48KW
Engine	Yunnei brand with 490 boost ， 48KW(optional)
Transmission	Torque converter, 4-wheel drive, two steering, Chinese Axle
Walking speed	Low speed 2 km / h high-speed 20 km / h
Cab	Left-hand drive, anti-tilt, FOPS cab, front loading shovel
Hydraulic system	Domestic hydraulic systems, open loop for hydraulic transmission and drum rotation
Operating lever	Electronically controlled four-speed joystick
Bucket	270 liters, hydraulic valve
Chute	Hydraulic adjustable angle, in order to increase the discharge length
Water supply system	Hydraulically driven self-priming pump, washing with high pressure water pump vehicle, electronically controlled self-priming pump, take 100 kg water per minute
Brakes	Air brake brakes, dual independent circuits
Tire	12-16.5 construction machinery tires
Power Systems	24V
Tank	Fuel tank: 35 liters, hydraulic tank: 120 l
Weight	3200kg
Dimensions	Length: 5 m Width: 1.9 m Height: 2.6 m
Measure	Electronic weighing, measuring water control, recipe controlled
