3 ton track carrier GNYS-3

Crawler Transporter is a commonly used crawler traveling special vehicles, it is widely used in agriculture, minerals, water and other large and small projects, for earth, rock, coal and other displaced work. Crawler Transporter can be divided into light and heavy duty trucks tracked crawler transporter according to their product rated operating capacity (carrying capacity).

Please call:
+86-537-6588123

3 ton track carrier GNYS-3 introduction

Crawler Transporter is a commonly used crawler traveling special vehicles, it is widely used in agriculture, minerals, water and other large and small projects, for earth, rock, coal and other displaced work. Crawler Transporter can be divided into light and heavy duty trucks tracked crawler transporter according to their product rated operating capacity (carrying capacity).

 3 ton track carrier GNYS-3 performance

1. The winter truck in muddy, icy roads in the form of freedom.
2. Dump design, crawler, motor running, which greatly extends the ability to use.
3. The specific size can be customized according to needs
4. carrying capacity, large climbing ability, simple operation, easy maintenance.

3 ton track carrier GNYS-3 specification

技术model

参数specification

发动机功率Rated power

74Kw

额度转速Rated revolution

2400r/min

载重Rated carrying capacity

3000kg

斗的外形尺寸

Body overall dimension(L*W*H)

3600mm*2200mm*600mm

最大行驶速度Max. Walking speed

5Km

履带宽Width of the track shoe

500mm

履带总长Length of the track shoe

2560mm

外形尺寸Overall dimension(L*W*H)

5600mm*2200mm*2500mm

最小离地间隙Minimum ground clearance

400mm

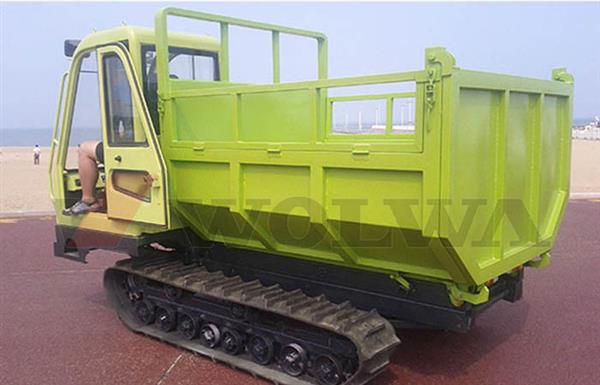

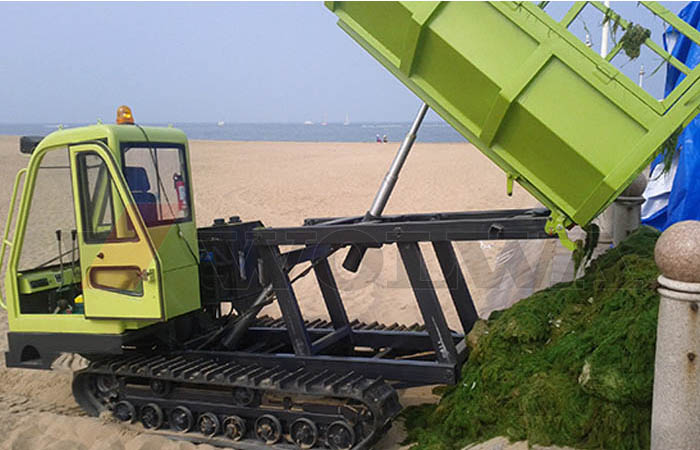

3 ton track carrier GNYS-3 photo

3 ton track carrier GNYS-3
