4 ton track carrier GNYS-4-Product-Wolwa Group Co., Ltd.

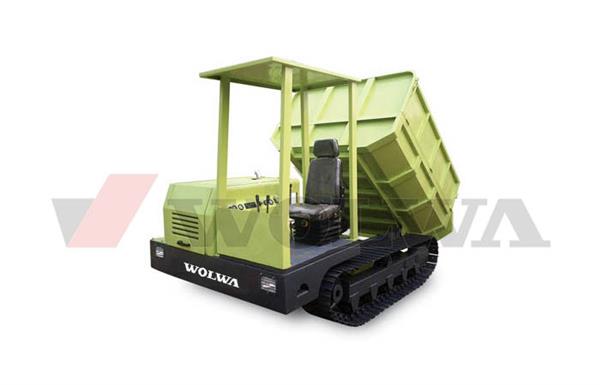

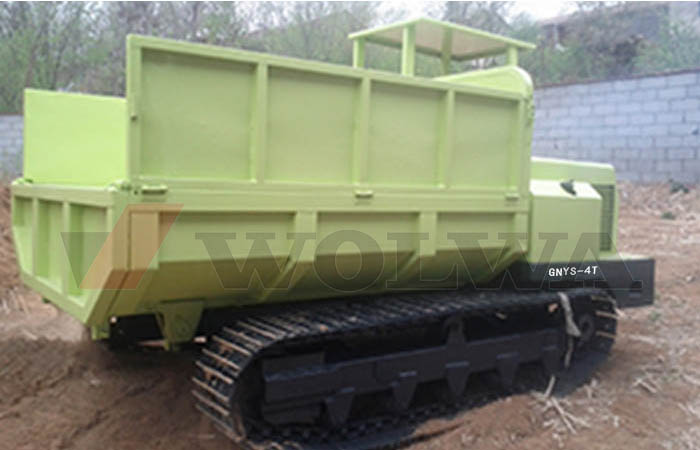

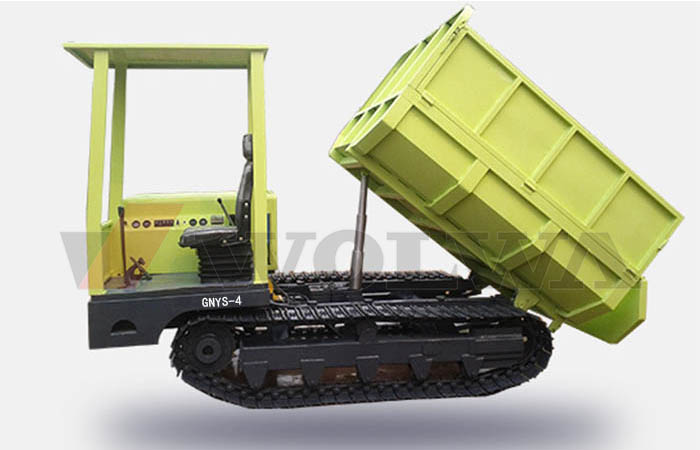

4 ton track carrier GNYS-4

Crawler Transporter is a commonly used crawler traveling special vehicles, it is widely used in agriculture, minerals, water and other large and small projects, for earth, rock, coal and other displaced work. Crawler Transporter can be divided into light and heavy duty trucks tracked crawler transporter according to their product rated operating capacity (carrying capacity).

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

4 ton track carrier GNYS-4 introduction

4 ton track carrier GNYS-4 performance

1. The winter truck in muddy, icy roads in the form of freedom.
2. Dump design, crawler, motor running, which greatly extends the ability to use.
3. The specific size can be customized according to needs
4. carrying capacity, large climbing ability, simple operation, easy maintenance.

4 ton track carrier GNYS-4 specification

4 ton track carrier GNYS-4 specification
发动机型号Engine model	Changchai 490（Optional）
功率Rated power	35KW/47.6HP
额定转速Rated revolution	2200r/min
工作重量Operating weight	6T
额定装载重量Rated carrying capacity	4T
行驶速度Max. Walking speed	25km/h
尺寸（长宽高） Overall dimension(LWH)	310021002300mm
履带板宽Width of the track shoe	320mm
离地间隙Minimum ground clearance	300mm
发动机Engine model	常柴490
变速箱Gearbox	Hangzhou Advance
