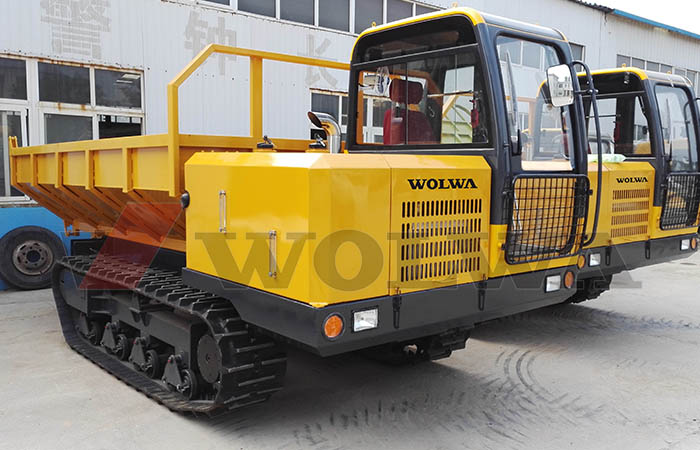

10 ton track carrier GNYS-10

Crawler Transporter is a commonly used crawler traveling special vehicles, it is widely used in agriculture, minerals, water and other large and small projects, for earth, rock, coal and other displaced work. Crawler Transporter can be divided into light and heavy duty trucks tracked crawler transporter according to their product rated operating capacity (carrying capacity).

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

10 ton track carrier GNYS-10 introduction

10 ton track carrier GNYS-10 performance

1. The winter truck in muddy, icy roads in the form of freedom.
2. Dump design, crawler, motor running, which greatly extends the ability to use.
3. The specific size can be customized according to needs
4. carrying capacity, large climbing ability, simple operation, easy maintenance.

10 ton track carrier GNYS-10 specification

GNYS-10 Track transporter technical parameters GNYS-10 履带运输车技术参数
Technical parameters 技术参数
Engine model 发动机型号	潍柴华丰6105 Weichai6105
Rated power 功率	100kw（136HP）
Rated revolution 额定转速	2200r/min
Working weight 工作重量	16Ton
Rated carrying capacity 额定装载重量	10Ton
Max. Walking speed 行驶速度	20km/h
Max. Flux 最大流量	2*180 L/min
System hydraulic pressure 系统工作压力	31.5MPa
Overall dimension(LWH) 尺寸（长宽高）	720025002800mm
Width of the track shoe 履带板宽	550mm
